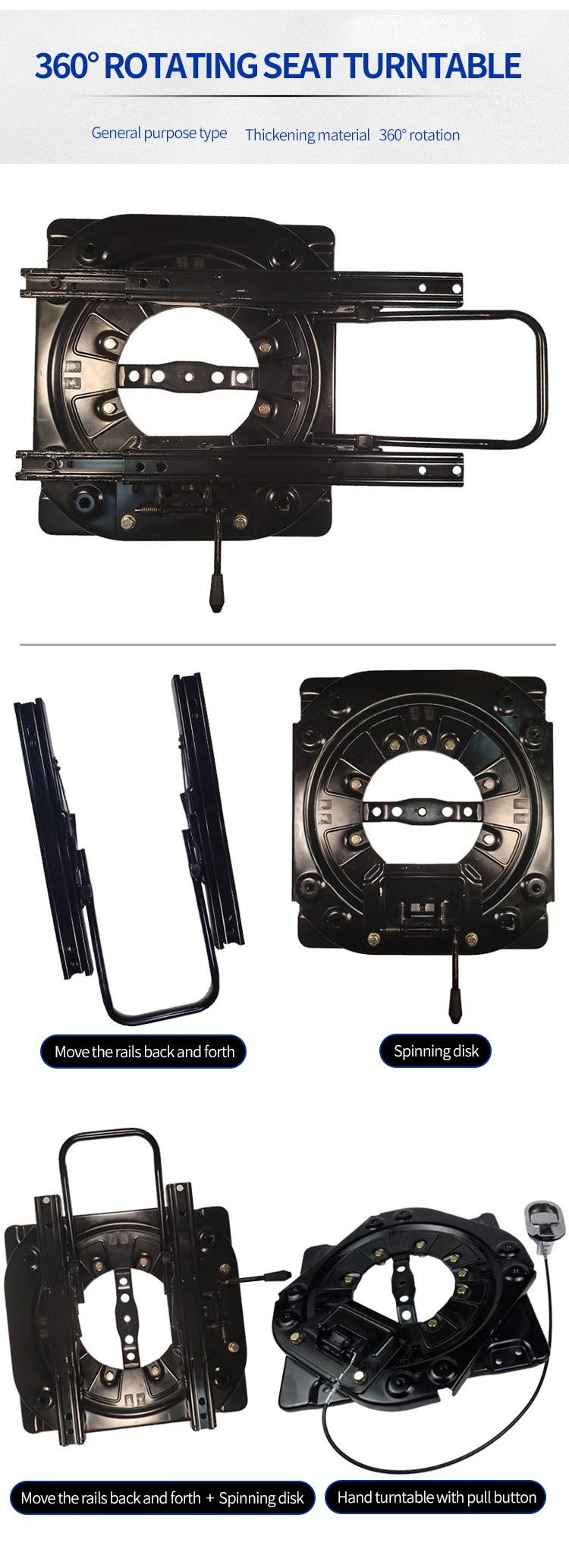

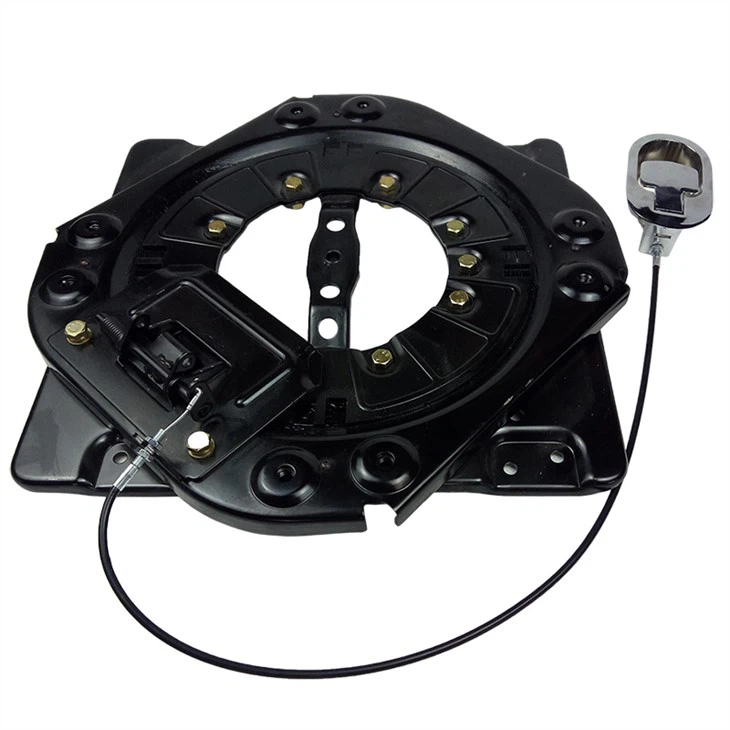

Car Seat Turntable

Installation Notes This turntable is not for special vehicles, all models need to be modified, and cannot be installed directly! This type of turntable can be installed on most single-seater seats, as long as the size difference is not too large and there is no protective plate with strong wrapping under the seat. .1. Install with screw rod. If the threaded hole position does not meet the requirements, you can use reaming or re-drilling. 2. Using the connection plate, you can add a thin iron plate (welding and cutting required), drill holes according to the holes on the rotating disc and the seat base, and then install

Installation Notes
This turntable is not for special vehicles, all models need to be modified, and cannot be installed directly!
This type of turntable can be installed on most single-seater seats, as long as the size difference is not too large and there is no protective plate with strong wrapping under the seat.
.1. Install with screw rod. If the threaded hole position does not meet the requirements, you can use reaming or re-drilling.
2. Using the connecting plate, you can add a thin iron plate (welding and cutting is required), drill holes according to the holes on the rotating disc and the seat base, and then install

Car Seat Turntables are available for various vehicle models, with both electric and manual options. Customized front passenger seats are designed for people with mobility impairments. Suitable for commercial vehicles, SUVs, and RVs, the driver and front passenger seats offer comfort adjustments to reduce fatigue for long-distance drivers..

Product name	car swivel chassis
Mode of operation;	manual
Certificate	ccc ce certification
Models used	commercial vehicles, vans, nanny cars, etc.

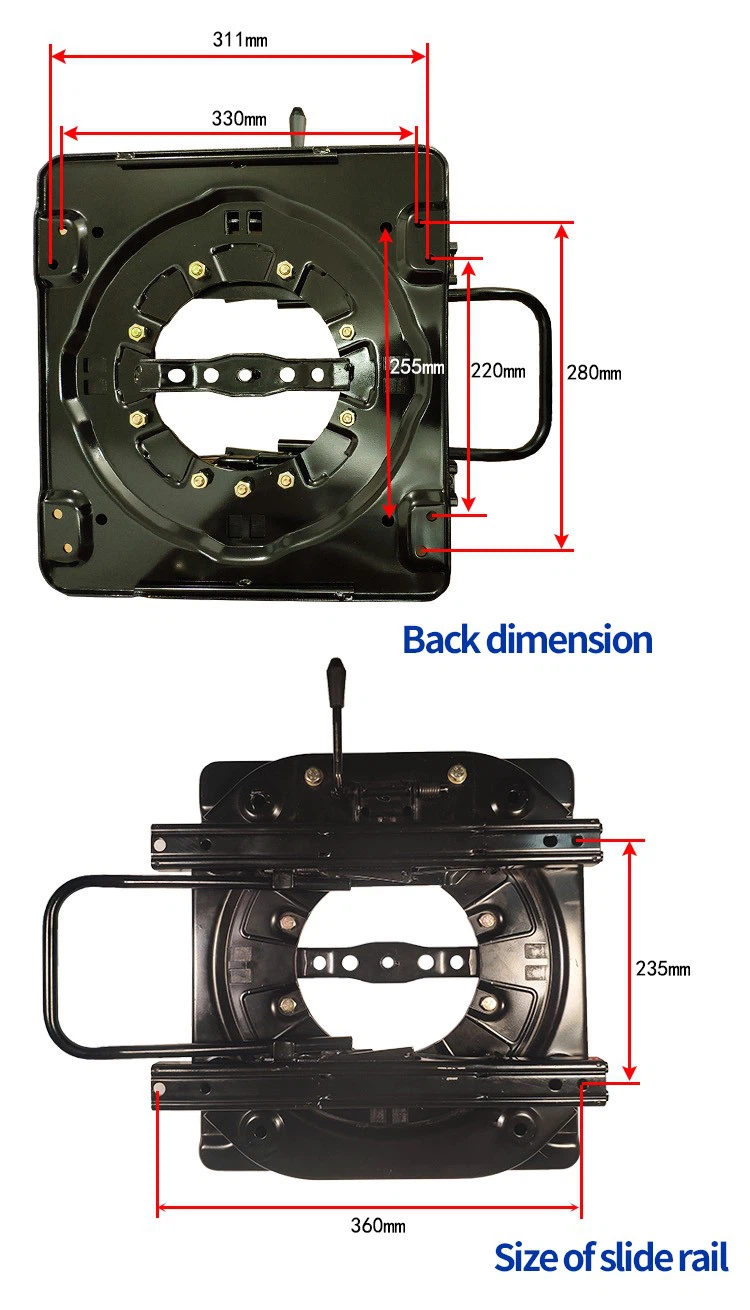

Front display with slide rail,pull the slide rod can move back and forth,do not pull the automatic fixed seat position

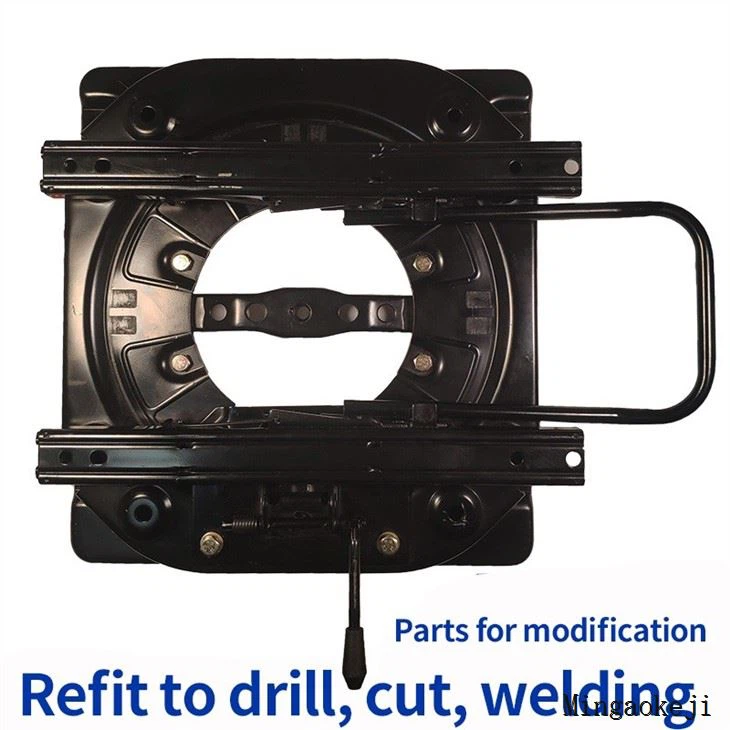

Disassemble the original seat and the seat base, andconnect the front of the rotating disc with the seatcushion and the back with the base:01. Use screws to connect. lf the screw hole position isnot suitable, or the size is slightly smaller, you can enlargethe hole or refill one or two holes02. An iron plate can also be added (transfer plate processing):according to the hole position and base on the rotating plate.The spacing ofthe hole is drilledNote: Professional modified products,most models can bechanged.

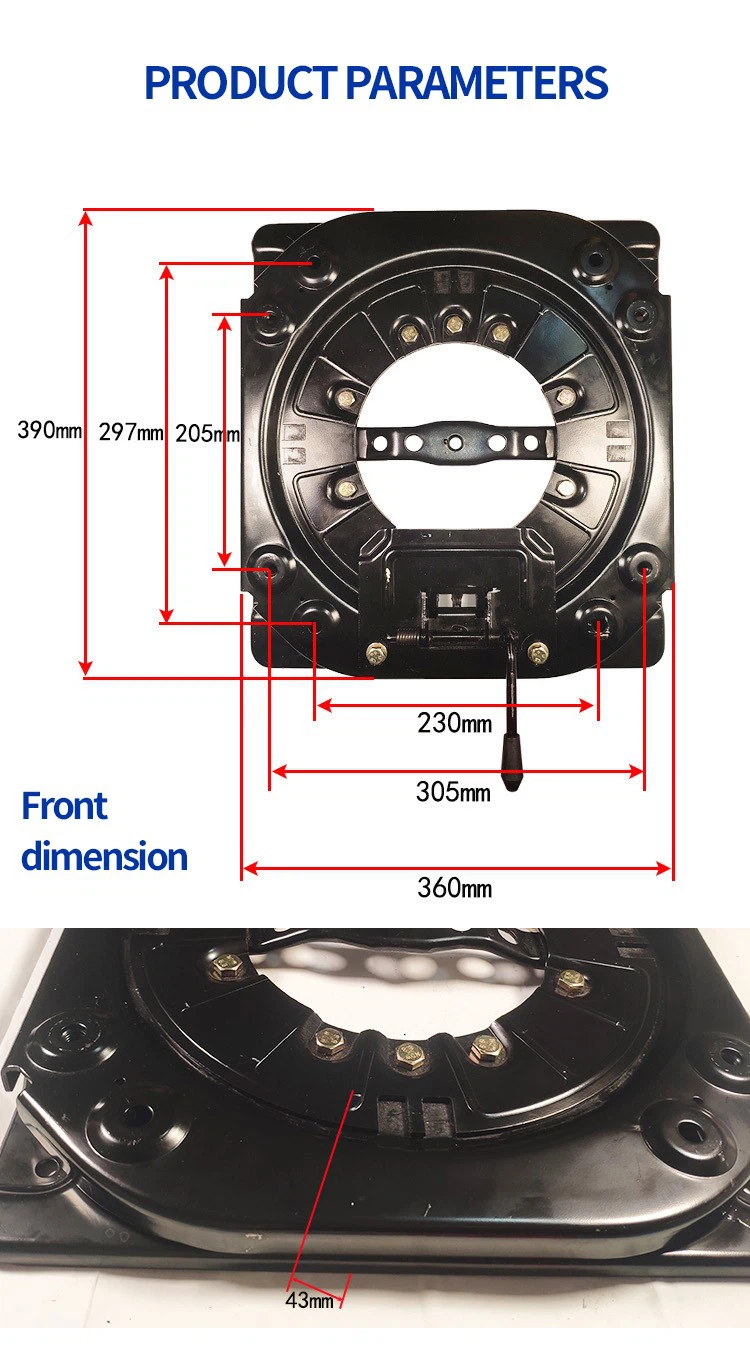

The white circle isconnected withthe seat base fromthe bottom upwith screws

Models used; commercial vehicles, vans, nanny cars, etc.
Popular search words; car seat turntable, commercial vehicle 360-degree rotation, car seat installation slide, RV seat slide rail turntable

Front and rearsliding railconnection holes
